Blueprint — Compact Cage

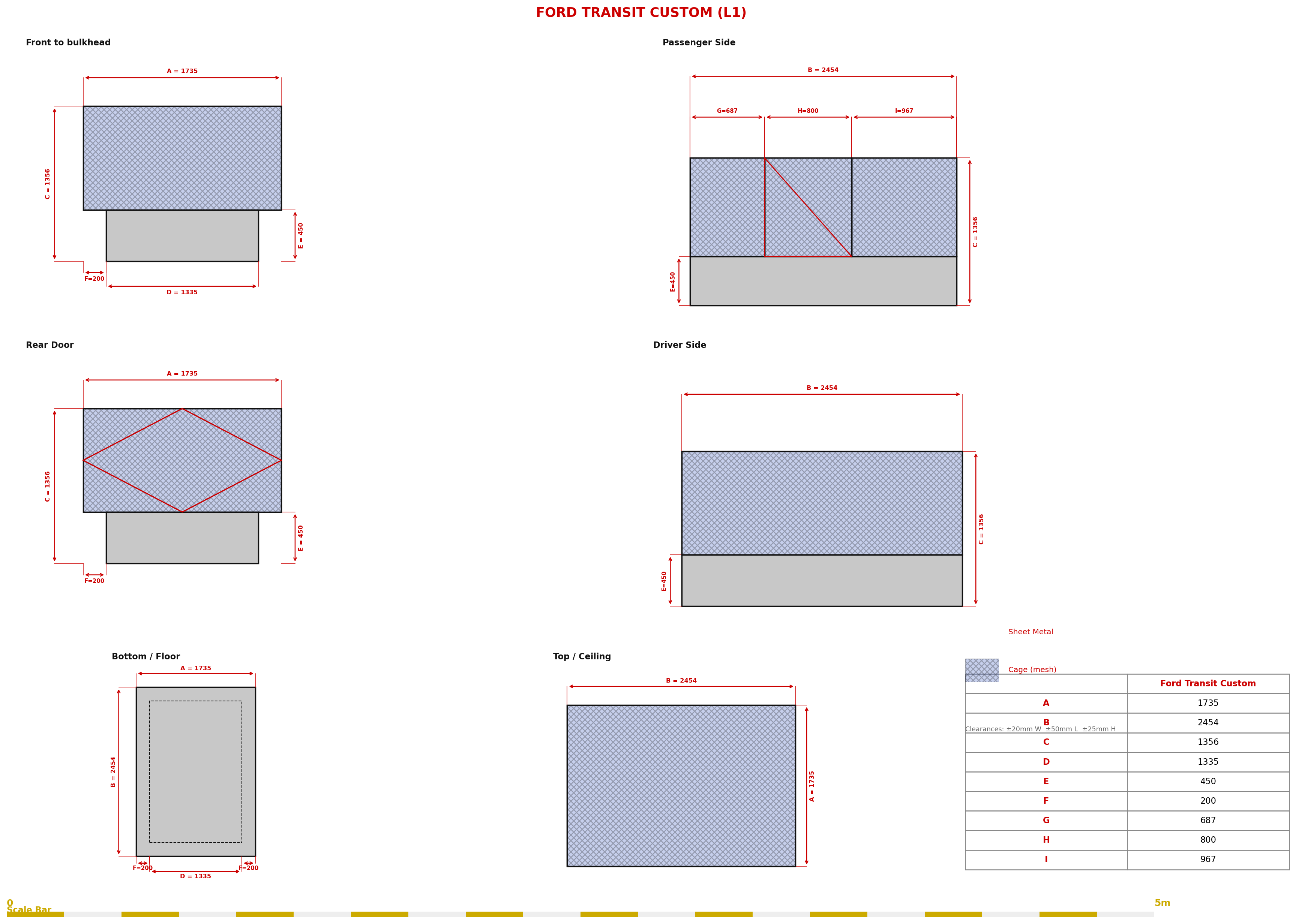

Technical specification drawing for the Compact cage as fitted to the Ford Transit Custom.
The UK's most popular compact panel van. Our Compact cage bolts into the Transit Custom in under 30 minutes — no drilling, no permanent modifications, transferable to your next van.
The Transit Custom's load bay — whether L1 or L2 — is ideally suited to the Compact cage. The arch-to-arch width of 1,180mm fits neatly between the wheel arches, giving you full-width security without wasted space.
The Transit Custom is one of the most commonly leased vans in the UK. Because our cage uses no permanent fixings and leaves no marks, it has zero impact on your lease return — which is why so many tradespeople choose it.
If you drive a Transit Custom Connect (smaller), call us — we'll confirm compatibility before anything is ordered.
No specialist tools, no van off the road all day. Here's what happens when we come to fit your cage.
The cage arrives in panels sized to fit through the Transit Custom's rear door opening. No roof-off, no side-panel removal — everything enters through the back.
The cage is positioned hard against the bulkhead at the front of the load bay. The Transit Custom's lashing rings and floor anchor points are used to secure it — no new holes are drilled.
The cage bolts to the floor and side rails using the Transit Custom's existing load anchor points. On EV variants, PU adhesive is used for the floor fixing instead of bolts — same rigidity, no risk to the battery floor.
A steel mesh panel is fitted to the sliding door frame, keeping the load bay secure even when the side door is open. Included as standard.
Locking mechanism tested, doors checked, your tools are protected. The van is back on the road the same day. When you change to your next van, the cage comes out just as quickly.
